AR‑QS001‑Standard Bridge Wire Electric Igniter
technical parameter
0.7±0.05Ω
-Safety Current: <=400mA (0.4A)
-Safety Test Current: 100mA(0.1A)
-Ignition Current:＞0.8A
-Firing Time: 50ms
-Pyrotechnic charge: 0.03-0.035g
-Diameter of matchhead: 3-4mm

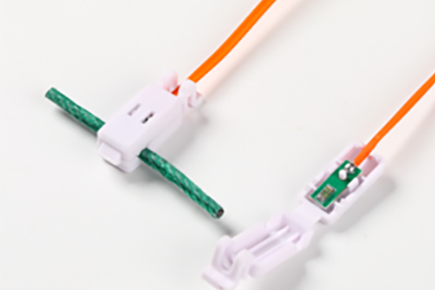

AR-WY001 Clip-on type Electronic Igniter
technical parameter
0.75±0.18Ω
-Safety Current: 500mA
-Safety Test Curren:t 200mA
-Ignition Current: >=1A
-Firing T Iime:20ms

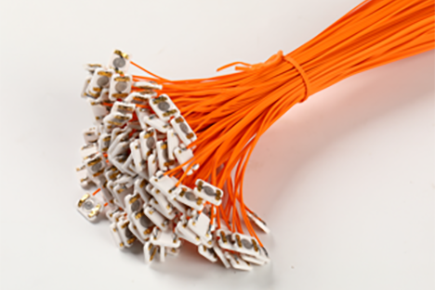

AR-BL001-Ring-Type E-match Igniter-Ballon igniter
technical parameter
1.5±0.1Ω
-Safety Voltage:<=3V
-Safty Curren: <=1A
-Ignition Current:>=3.7-4.2V
-Maximun Ignition Voltage: <=4.2V
-Maximun Ignition Current:2A
-Maximun Heat Temperature:400℃

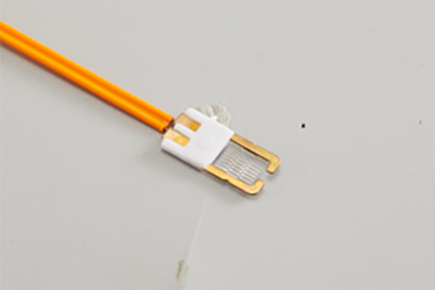

AR-WZ001-Net-Type Ballon igniter
technical parameter
1.5±0.1Ω
-Safety Voltage:<=1.5v
-Safty Curren: <=0.5A
-Ignition Current:>=5V
-Maximun Ignition Voltage: <=16V
-Maximun Ignition Current:1A
-Maximun Heat Temperature:350℃
Discuss Your Requirements
Not sure which product or configuration fits your application?
Contact AURAN to discuss your application, electrical requirements, firing equipment, connection requirements, or product configuration.
